Trailing Arm for Air Suspension
DESCRIPTION
Product Features
- Made from patented steel， durability up to 1 million laboratory cycles with 2.5 × axle load
- With optimized assembly specification, pull out force ＞40kN
- Dimensions related to Riding height, wheel , axle load and own specification of the trailing arm like spring steel cross section, coating specification, spring rate and etc. can all be tailor made.

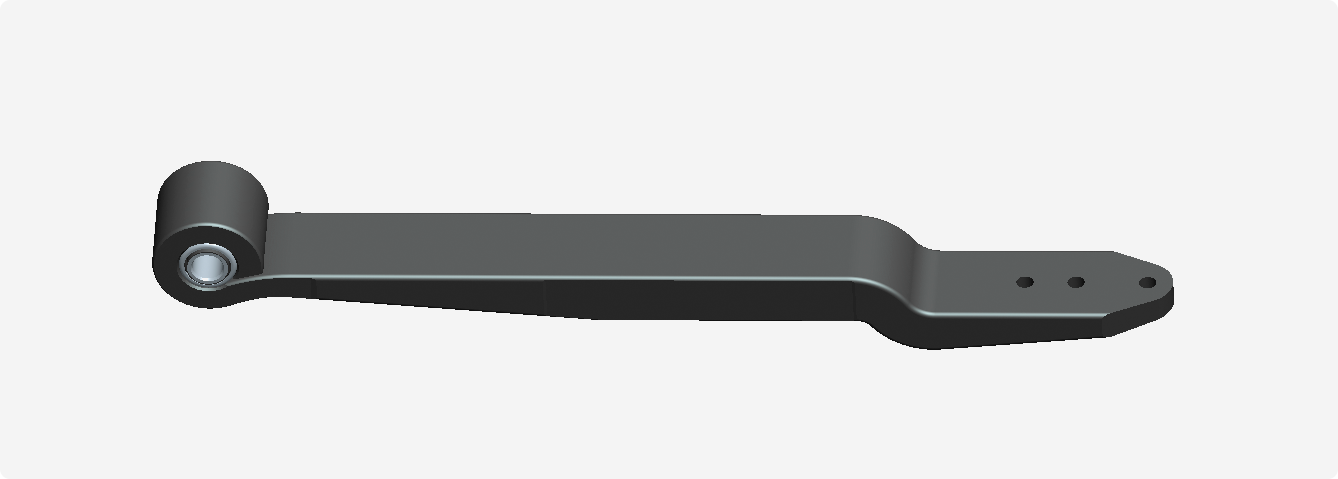

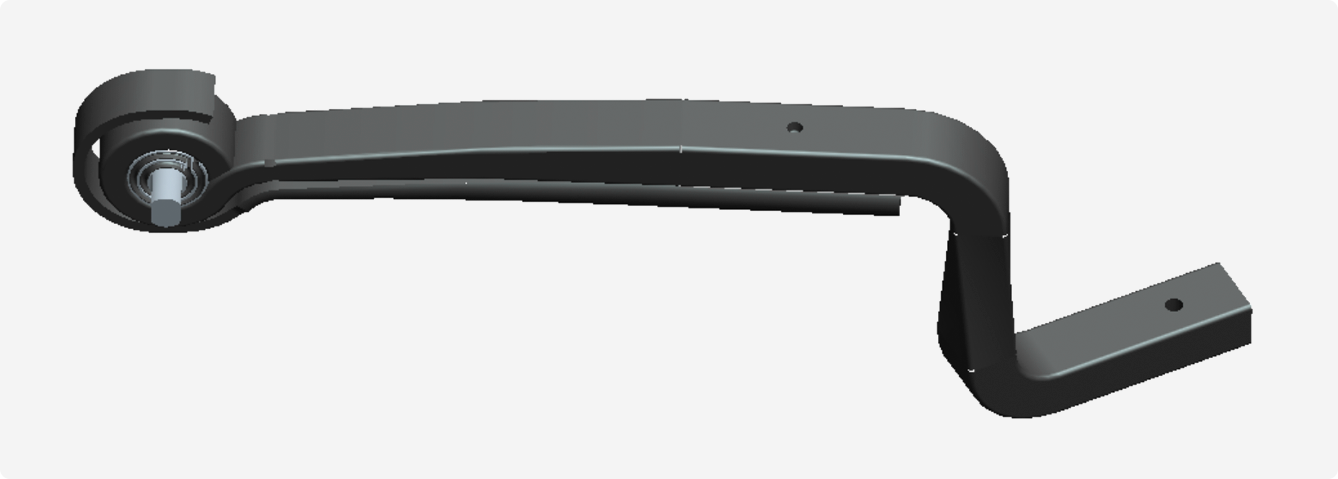

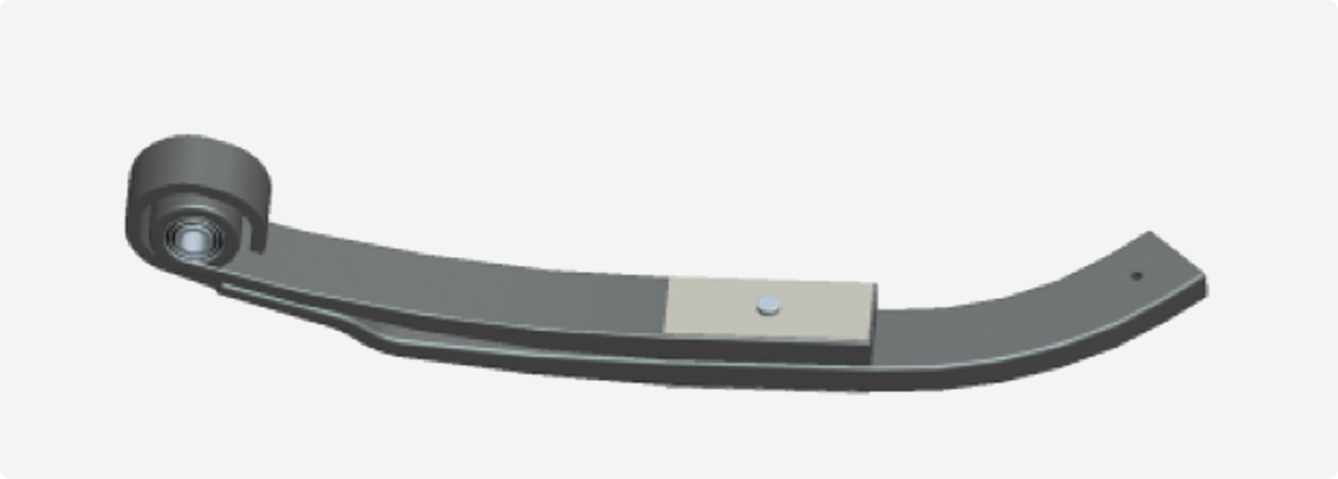

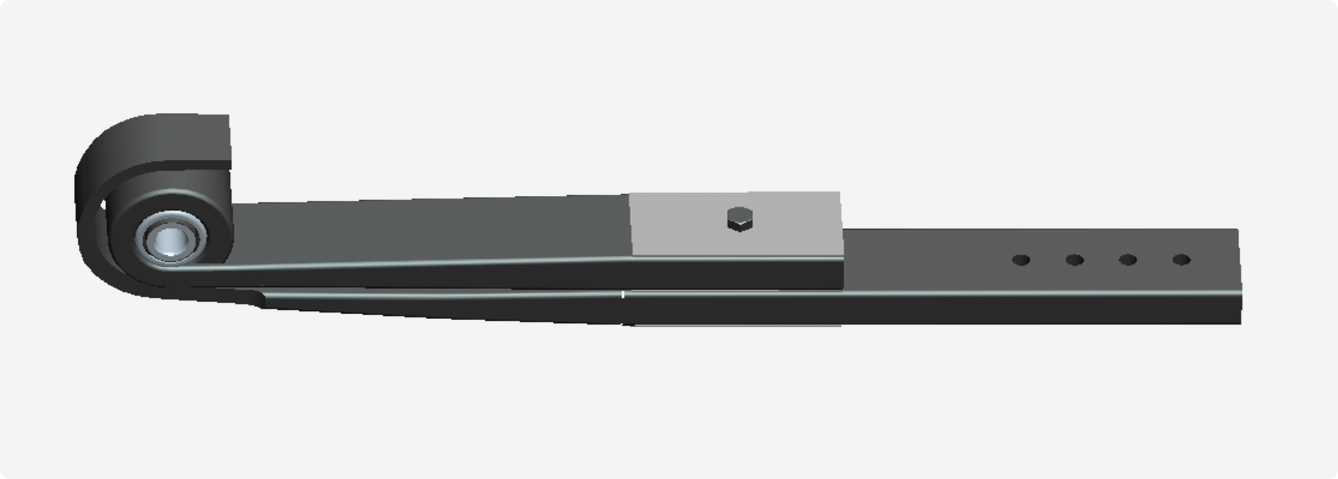

Product type chart
|
Axle load (kg) |
Type |
Bushing |
Dimension _bushing to wheel |
Dimension _air spring to wheel |
Cross-section @ clamping area |
Height drop |
Weight (kg) |
|
9,000 |
① |
Φ 24.5×72 |
500 |
380 |
62×70 |
110 |
29.4 |
|
10,000 |
① |
Φ 30×102 |
500 |
380 |
48×100 |
117 |
35.5 |
|
12,000 |
① |
Φ 30×102 |
500 |
380 |
56×100 |
125/165 |
39.6/41 |
|
② |
Φ 30×104 |
535 |
390 |
40×100 |
/ |
53.2 |
|
|
① |
Φ 30×102 |
530 |
380 |
59×100 |
45/150 |
41/42.5 |
|
|
13,000 |
③ |
180×Φ19 |
635 |
390 |
56×100 |
335 |
60.5 |
|
11,500 |
④ |
Φ 30×104 |
600 |
400 |
30×100， 38×100 |
/ |
49.8 |
